Screening System

Grizzly Feeder

Gulf Center Vibrating Grizzly Feeders are built to handle heavy-impact loading while maintaining a consistent material flow into crushing or screening systems.
Designed for primary feed applications, they come in portable or fixed configurations, with models suited for both severe duty (truck dump hoppers, large stone) and standard duty (loader-fed portable plants).
Optional “stepped” grizzly bar sections enhance material scalping, ensuring smaller stones are efficiently screened for smoother downstream performance.

Durable vibrating feeders designed for heavy-impact loading and consistent material flow in primary screening operations.

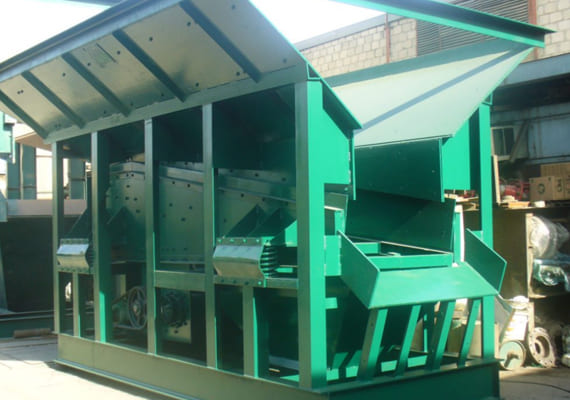

The Gulf Center Vibrating Grizzly Feeder operates on a balanced, high-efficiency vibration principle that ensures smooth material flow and controlled feeding.

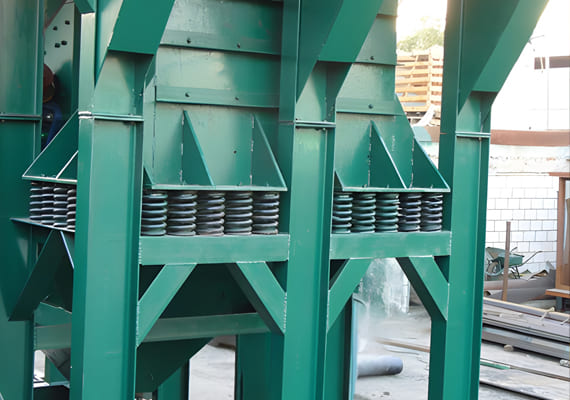

It consists of a vibrating frame, springs, vibrator assembly, motor, and a precision-engineered drive mechanism.

The vibration is generated by dual eccentric shafts with synchronized gears that rotate in opposite directions, producing a strong linear motion.

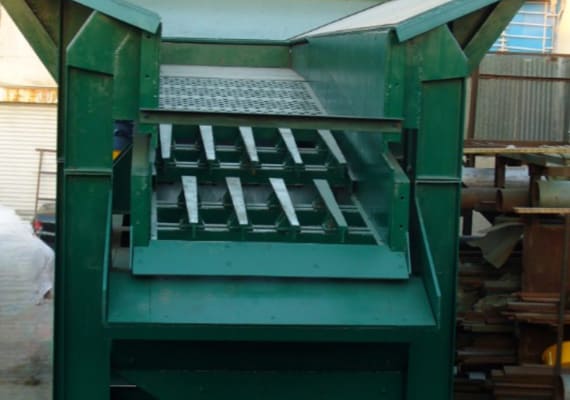

This motion causes the material to move steadily across the feeder deck, allowing fines to fall through the grizzly bars before reaching the crusher.

The result is improved screening efficiency, reduced crusher load, and optimized material separation — ideal for both portable and fixed plant configurations in primary feed applications.

High processing capacity with powerful vibration for continuous material flow

Heavy-duty, rugged construction designed for harsh industrial environments

Custom-built designs tailored to client specifications and plant layouts

Efficient performance with low noise and minimal vibration fatigue

Adjustable vibration amplitude for precise material control

Easy operation and maintenance with accessible components

Multiple screening media options for different material types

Engineered for maximum efficiency, durability, and reliability

ISO-certified fabrication and KOC-approved quality standards

Grizzly Fedeer
Model	Max Feeding Size (mm)	Capacity (t/h)	Power (kW)	Rotate Speed (r/min)	Hopper Size (mm × mm)	Overall Dimensions (L × W × H) (mm)	Weight (kg)
VF 100 × 300	350	120–170	15	740	4740 × 2740	4000 × 2520 × 3000	8000
VF 125 × 450	550	170–250	22	740	2130 × 1510	5000 × 2520 × 3540	14000
VF 150 × 600	800	250–400	37.5	900	4600 × 2020	6000 × 2620 × 5540	32000
Notes: Capacities may vary depending on material type and installation. Custom configurations available upon request. Proudly made in Kuwait — ISO Certified & KOC Approved
